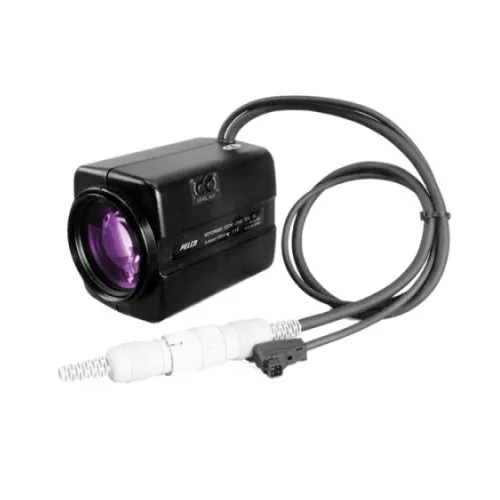

1/3" Auto Iris 5.6-112mm 20X Motorized Zoom Lens 13ZD5.6X20

Also Known As:

Auto Iris, Motorized Zoom Lens, Security Camera Lens, CS Mount

About:

Pelco’s 13ZD5.6X20 5.6 – 112mm F/1.6 Zoom Lens cover a wide range of applications from wide angle to telephoto. Appropriate for indoor and outdoor lighting situations, the 13ZD5.6X20 lens will fit all 1/3-inch CS-mount cameras requiring DC-drive auto iris lenses.

Features:

• Application/Usage Surveillance Camera
• The focal lengths of this DC drive auto-iris 6X lens range from 6mm to 36mm

Specifications:

• Lens Size: 5.6-112mm
• CCD Size: 1/3"
• Minimum Focal Length: 5.60 mm
• Maximum Focal Length: 112 mm
• Maximum Aperture: f/1.6
• Lens Mount Type: CS Mount
• Mount Type: Motorized Zoom
• Iris Type: Auto Iris
• Part Number : 13ZD5.6X20
