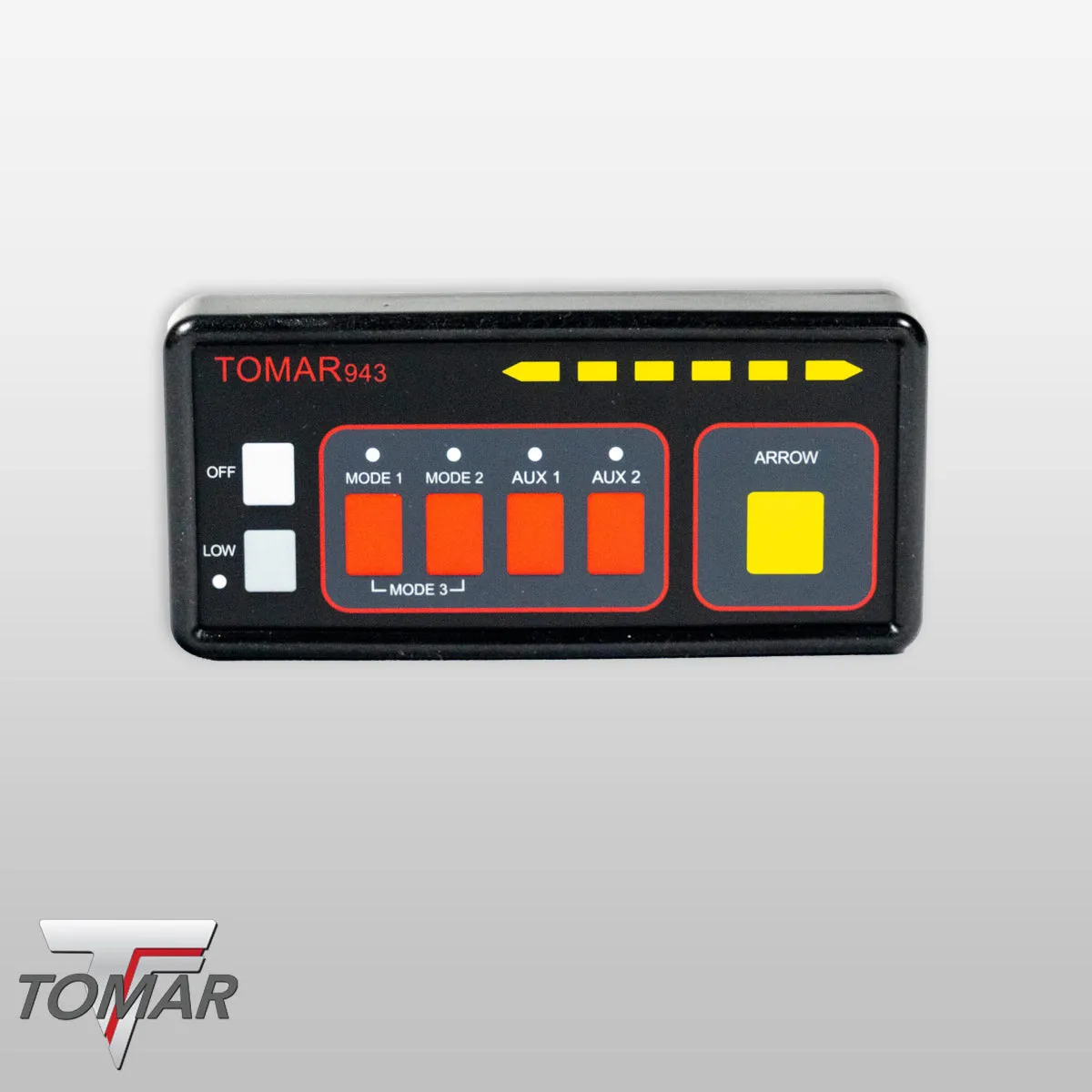

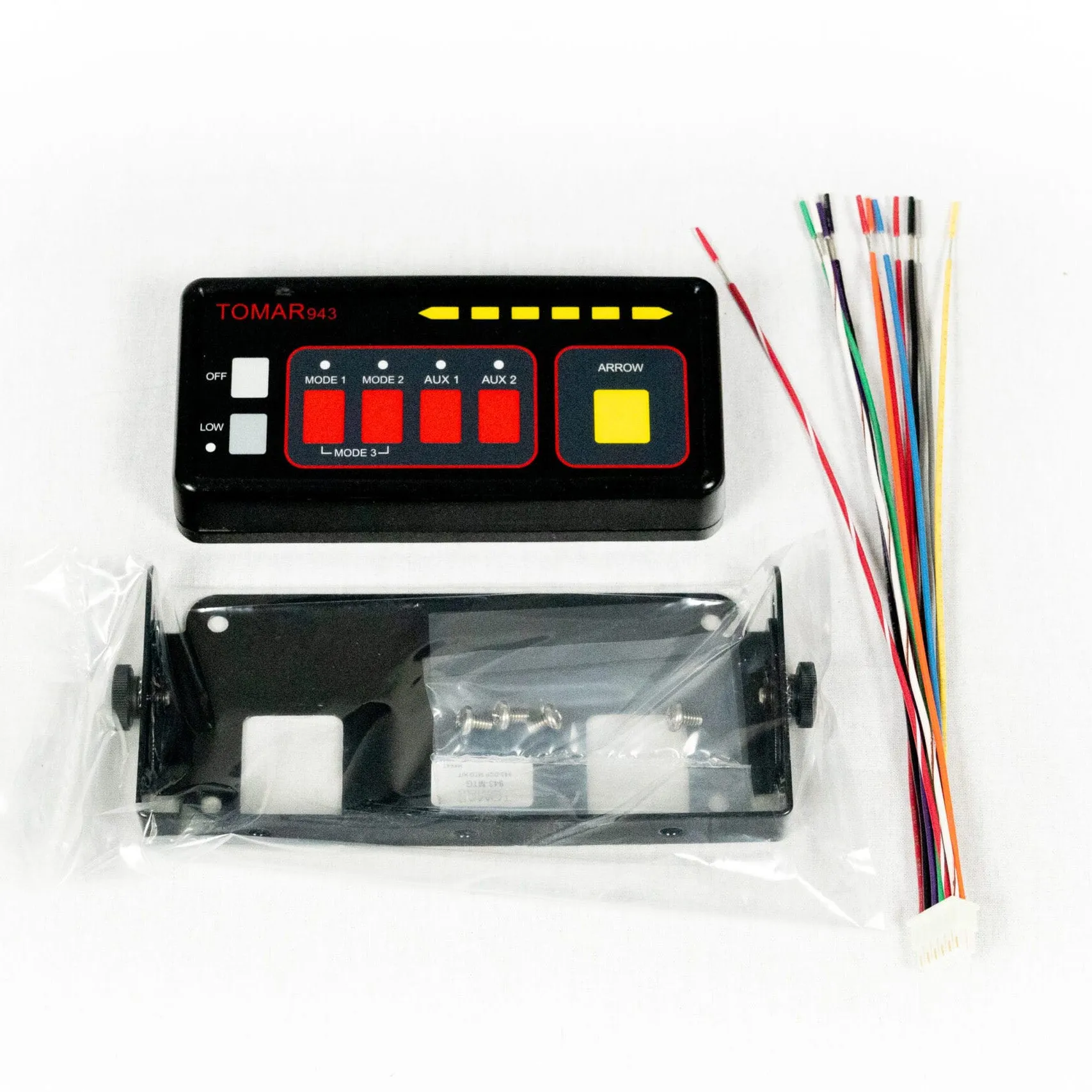

The 943 Switch Box is a compact, programmable, full function lighting controller featuring two warning mode switches, two auxiliary switches, a step through arrow switch, a dedicated dim switch that can be used as a third auxiliary switch and a progressive system off switch.

The switch panel incorporates LED backlighting and LED switch indicator lights for easy day or night readability. 943 six LED indicator panel provides visual indication of warning mode, left arrow, right arrow or center out activation. Each switch is rated for 5 amps with a system total of 12 amps.

SPECS

• Dimensions: 142mm x 66mm x 25mm (5.625″x 2.625″x 1″)
• Operating Temperature Range: 55°C to 65°C
• Input Voltage Range: 12 VDC
• Output: Each switch is rated at 5A, combined current not to exceed 12A
