Product Details
＋

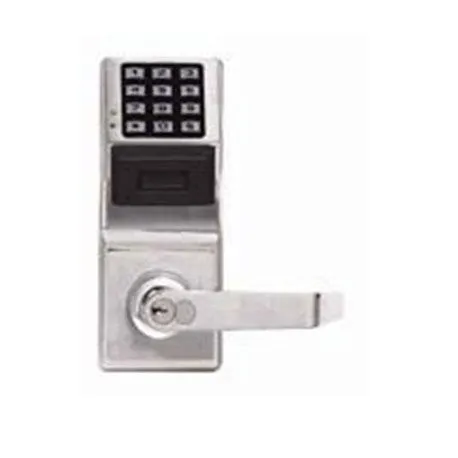

PDL8200ICWUSD-S
PDL8200 SERIES - Prox and digital cylindrical lock supporting 5,000 PIN user codes (3-6 digits), and a 13.56 MHz iClass smart card proximity reader. 500 scheduled events and 35,000 event audit log
Specifications
- Door Thickness
- Fits 1 5/8" to 1 7/8"
- Backset
- 2 3/4" (2 318" also available. Must specify when ordering)
- Strike
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- Latch bolt
- UL Listed, fire rated 3 hours, 1/2" throw, reversible
- Banding
- Non-handed
- Power
- 4 C-cell batteries (Included)
- Keypad
- All metal, 12 button. Basic functions programmed through keypad
- Door Prep
- Standard ANSI AlIS Series prep, modified by adding additional through-bolt holes
- Compliances
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- Cylinder
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwln CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can he used with the filV620 tailpiece (supplied)
- Interchangeable Core Models
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 phi Yale and Corbin-RusswIn IC core models prepped for 6 pin Medeco, Sargent, and Schaige
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
