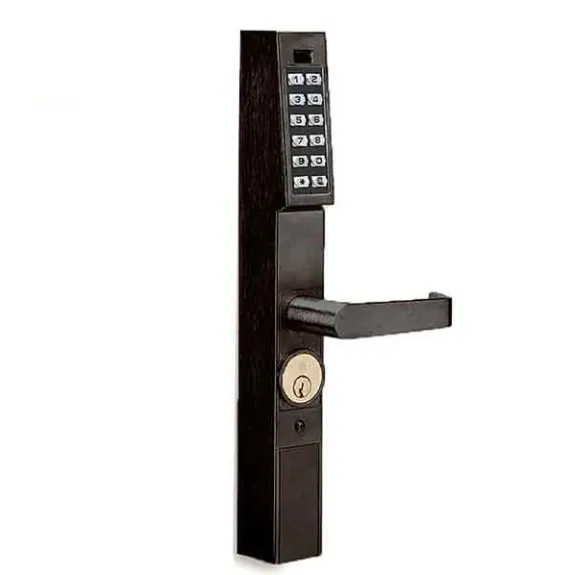

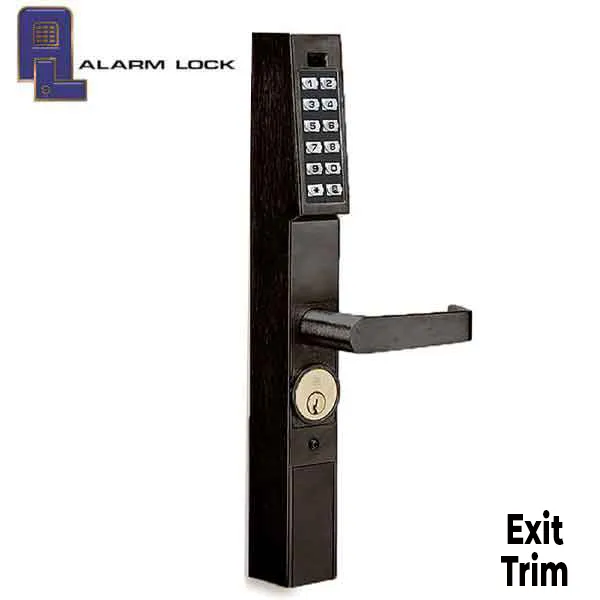

Trilogy Narrow Stile Keypad Exit Lever Lock models support Arrow, DCI, Von Duprin and Dorma panic exit bars. Get field-proven Trilogy® keyless access lock convenience anywhere there's a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1200 series is a rugged entry lock of advanced design with several programmable features.
Important Note: Tailpiece is sold separately and is required for most installations
Cylinder not included
(compatibility table below)
| --- | Tailpiece | Compatible Devices |
|---|---|---|
| ALL-TP-1691 | Arrow S1200/1250, Von Duprin 22 & Dorma 5300, DCI 1200/1300 Panic Devices | |
| ALL-TP-1693 | Corbin ED8200 Panic Device | |
| ALL-TP-1694 | Von Duprin 33 LH (RHR) Devices only |
| Specifications | |
|---|---|
| LOCK FUNCTION | Narrow Stile Keypad Exit Lever Lock |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 31/32”,1 1/8’ and 1-1/2” |
| HANDING | Non-handed; fully field-reversible |
| LEVER TRIM | Aluminum door retrofit Arrow, DCI, Von Duprin and Dorma panic exit bars |
| POWER | Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert |
| CYLINDER | 1-1/4” Cylinder (Not Included) (Supports 1-1/8, 1-1/4, and 1-3/8”) |
| PROGRAMMABLE | Yes |
| USER CODES | keypad supports 100 users, fingertip/keypad programmable |
| WEATHERPROOF | -31˚ to 151˚F (-35˚ to 66˚C) |
| FINISH | 10B Durondic Bronze |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page
