Product Details
＋
BLD-5485V.XXX.PRIV

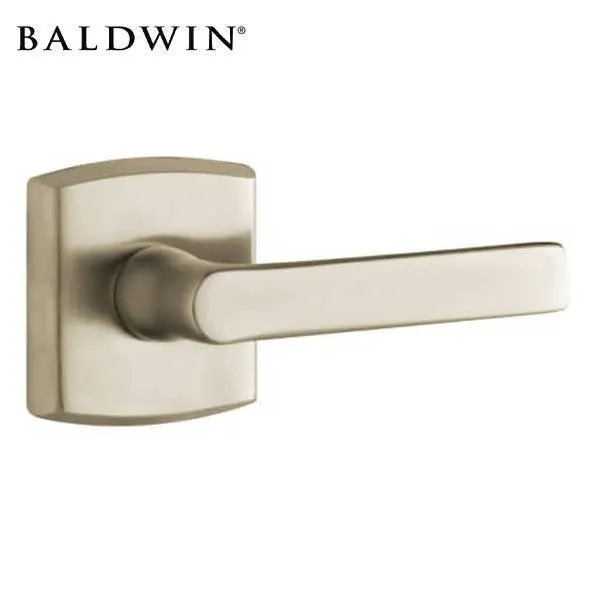

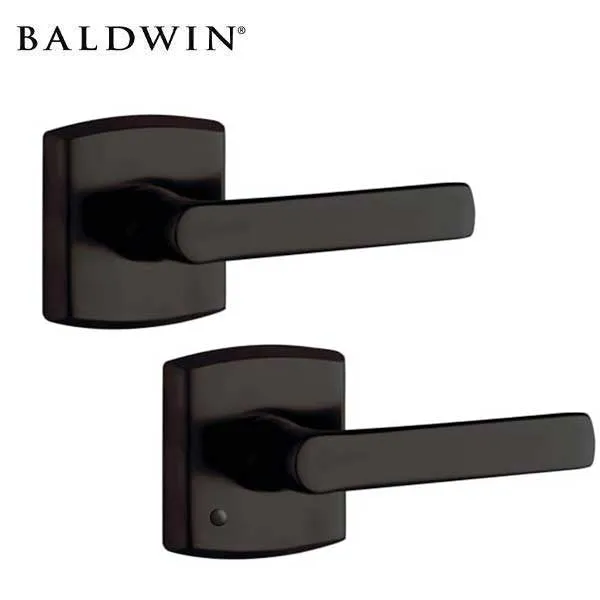

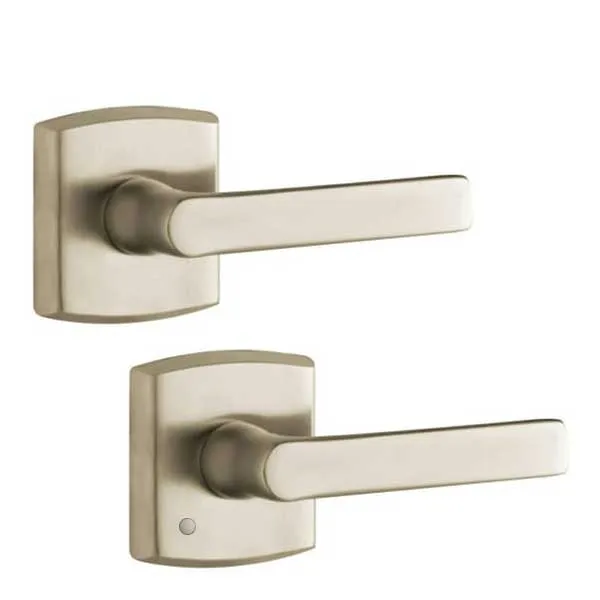

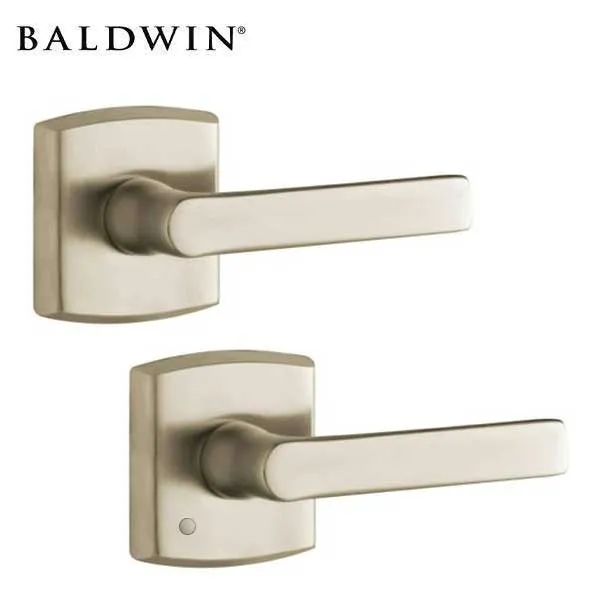

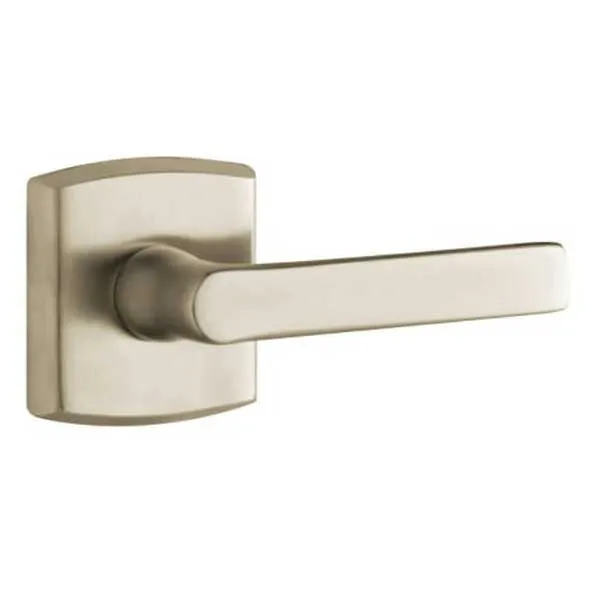

Baldwin 5485V.PRIV Privacy Lever Set with R026 Roses and Concealed Screws
Privacy Function: Baldwin privacy knobs lock from the interior through a pin on the interior rosette, with an emergency release hole on the exterior, making them ideal for bathrooms or bedrooms where the ability to lock the door is desired, but a keyed entry is unnecessary.
Features:
- Finished and polished by hand
- Anti-friction nylon insert provides quiet closing and reduces strike plate scratches
- Working parts are precisely machined for maximum strength

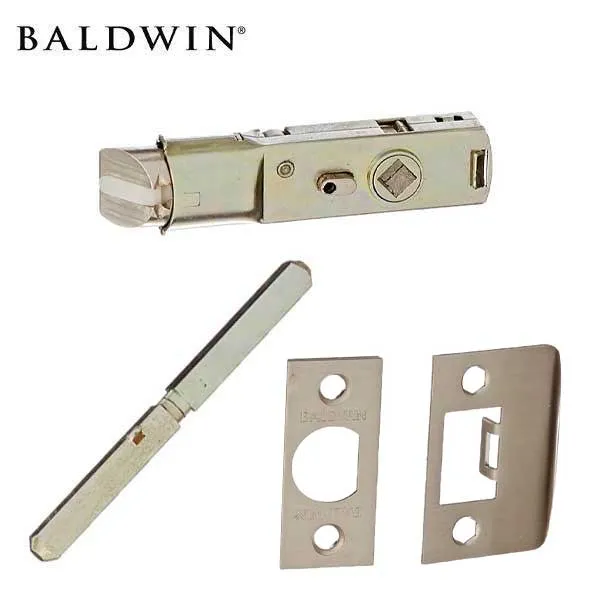

- Comes with R026 rose and full lip strike
Specifications
| Configuration |
Leverset |
| Function |
Privacy |
| Cylinder | No Cylinder |
| Keyway | No Cylinder |
| Handing | Reversible Left or Right |
| Finish | 056 - Lifetime Satin Nickel 150 - Satin Nickel 102 - Oil-Rubbed Bronze |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Rose Size | 2.75" x 3.00" |
| Cross Bore |
2-1/8" |
| Door Thickness |
1-3/8" |
| Lever Length | 4.367" |
| Concealed Screws | Yes |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page . Once you have the ticket contact UHS Hardware for the return.
