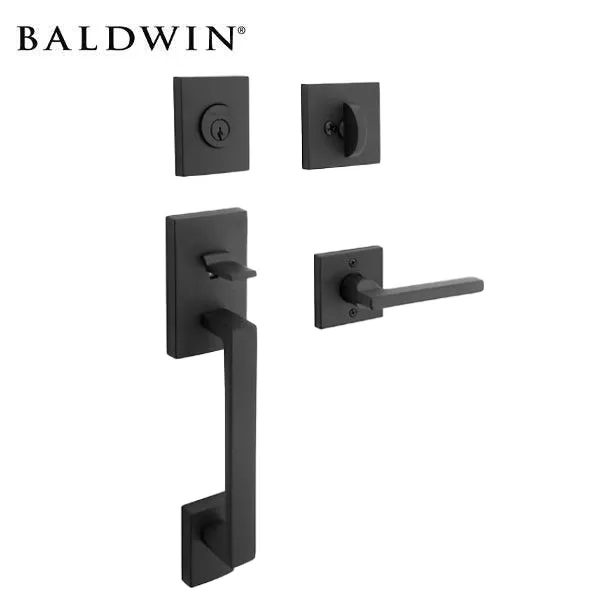

The Baldwin La Jolla handle set features geometric precision and minimalistic design which accentuates homes with contemporary style. With a choice of interior lever or knob and trim, the La Jolla handle set is customizable to match one's personal tastes.
Single Cylinder: Baldwin's single-cylinder handle set has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumb turn on the interior. This handle set includes both the interior and the exterior for a complete entrance solution.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security
- Solid forged brass construction built to last a lifetime.
- Includes all mounting hardware for quick and easy installation
- Solid brass deadbolt latch with a hardened steel roll pin for additional strength and security.
- Accommodates door thickness 1-3/8" to 2".
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
| Handing | Left Handed |
| Finish | 190 - Satin Black |
| Latch Faceplate | Square Corner |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Door Thickness |
1-3/8" to 2" |
| Latch | 6 Way Latch |
| Latch Bolt | Deadbolt features 1" throw brass bolt latch. . Grip offers ½” passage/privacy function bolt. |
| Strike | Dual Strike |
| BHMA Certification |
Grade 2 |
| Warranty | Limited lifetime mechanical and limited 25 year manufacture's finish warranty |
