Product Details
＋

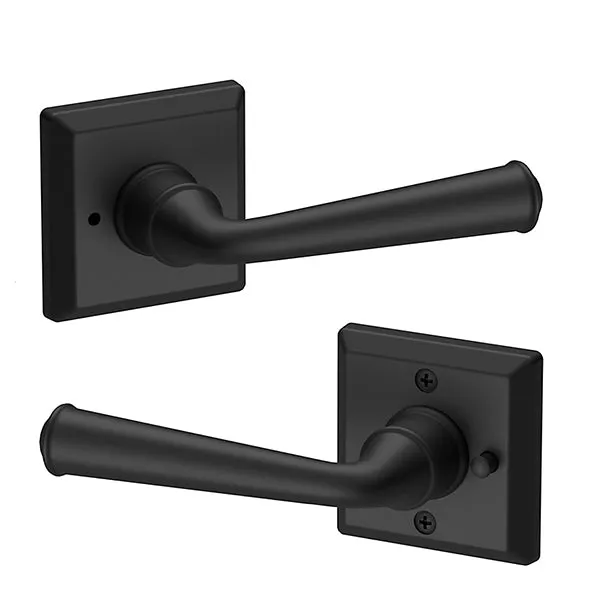

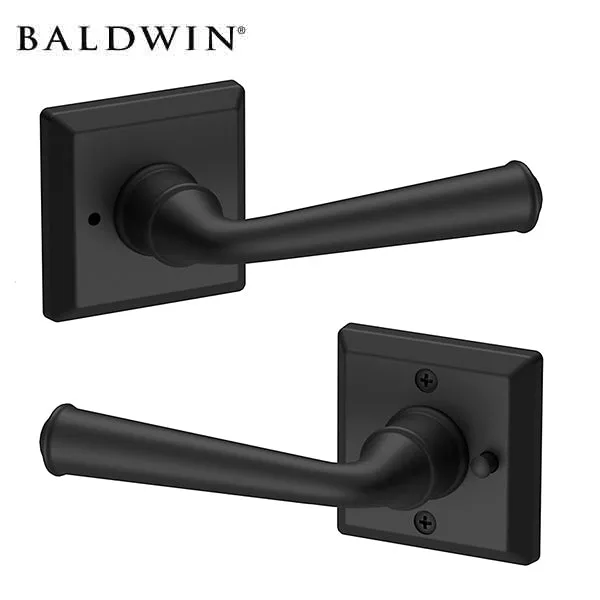

Baldwin Federal Reserve Lever with Traditional Square Rose, Privacy Function, Satin Black
Privacy Function: Baldwin's privacy knobsets are locked from the interior via a pin on the interior rosette. There is an emergency release hole on the exterior rosette. These privacy knobs are perfect for a bathroom or bedroom where the ability to lock the door is desired but a keyed lock isn't necessary.
Features:
- Federal Reserve Lever, with Traditional Square Rose
- Solid forged brass construction.
- Shown with Traditional Square Rose, can be customized with other Reserve roses.
- All privacy function knobs and levers are available with push-button locking: easily unlock the door by turning the knob or lever; manual unlocking is not required.
- Features easy-to-install spring assisted chassis for optimal operational strength.
- 2-1/8" cross bore and 1" edge bore for latch.
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door door with service part kit.
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
- Field Reversible
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Exposed screws
Specifications
| Configuration | Lever |
| Function | Privacy |
| Cylinder | No Cylinder |
| Finish | 190 - Satin Black |
| Handing | Field Reversible (Non-Handed) |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Lever Rotate |
55 - 60 degrees |
| Lever | 4-1/4 in. |
| Edge Bore | 1" |
| Projection | 2-9/16 in. |
| Rose | 2-19/32 in. x 2-19/32 in. |
| Door Thickness |
2 in. to 2-1/2 in. |
| Concealed Screws | No |
| BHMA Certification | Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page . Once you have the ticket contact UHS Hardware for the return.
