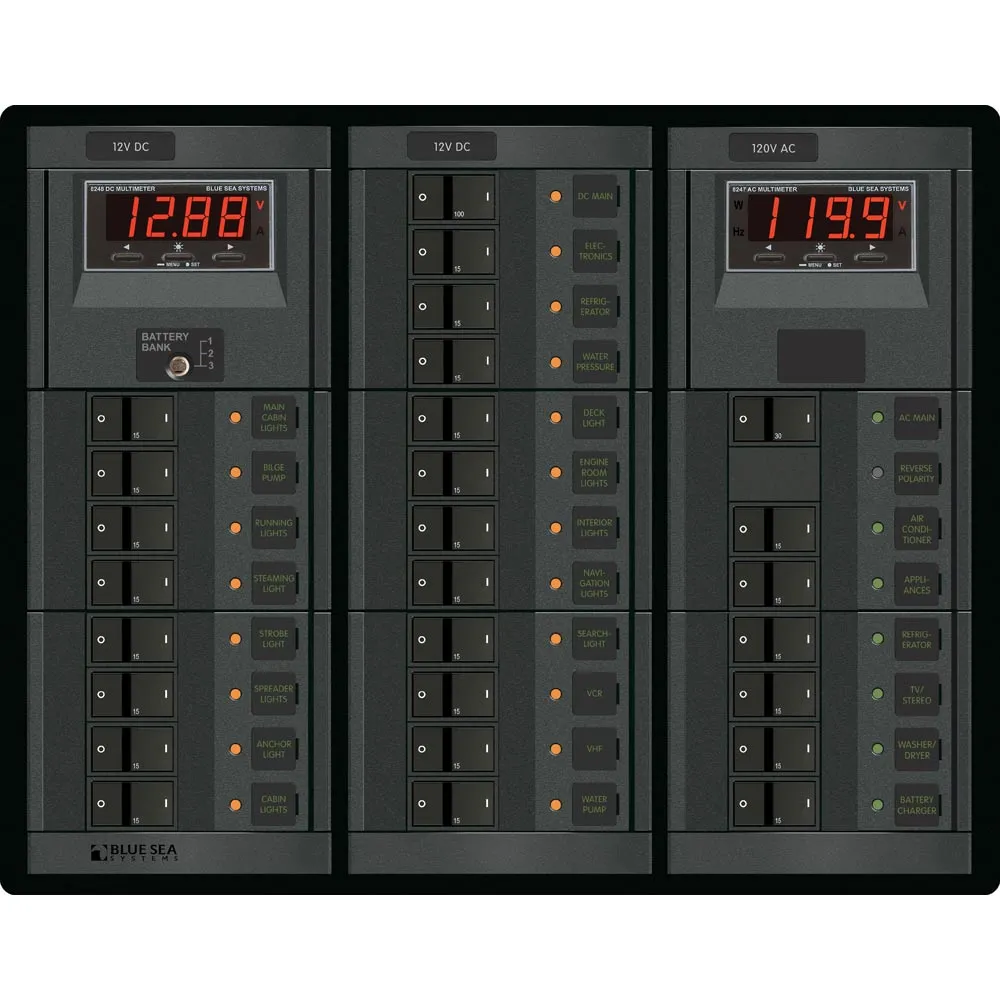

12 Volt DC Main 19 Positions/120 Volt AC Main 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application




• AC and DC panel amperage determined by AC Main and DC Main circuit breakers




• Modular manufacturing design reduces manufacturing time




• Interchangeable modular design eliminates custom engineering and metal fabrication




• Flexible modifications




• Flexible panel orientation (panels without meters)

Specifications:

•
  Positions: 6-AC / 19-DC




•
  Nominal Voltage: 120V AC / 12V DC




•
  Height: 10.75" (273.05mm)




•
  Width: 13.63" (346.2mm)




•
  Depth: 4.00" (101.6mm)




•
  Weight: 12.80lb (5.81kg)

Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)
