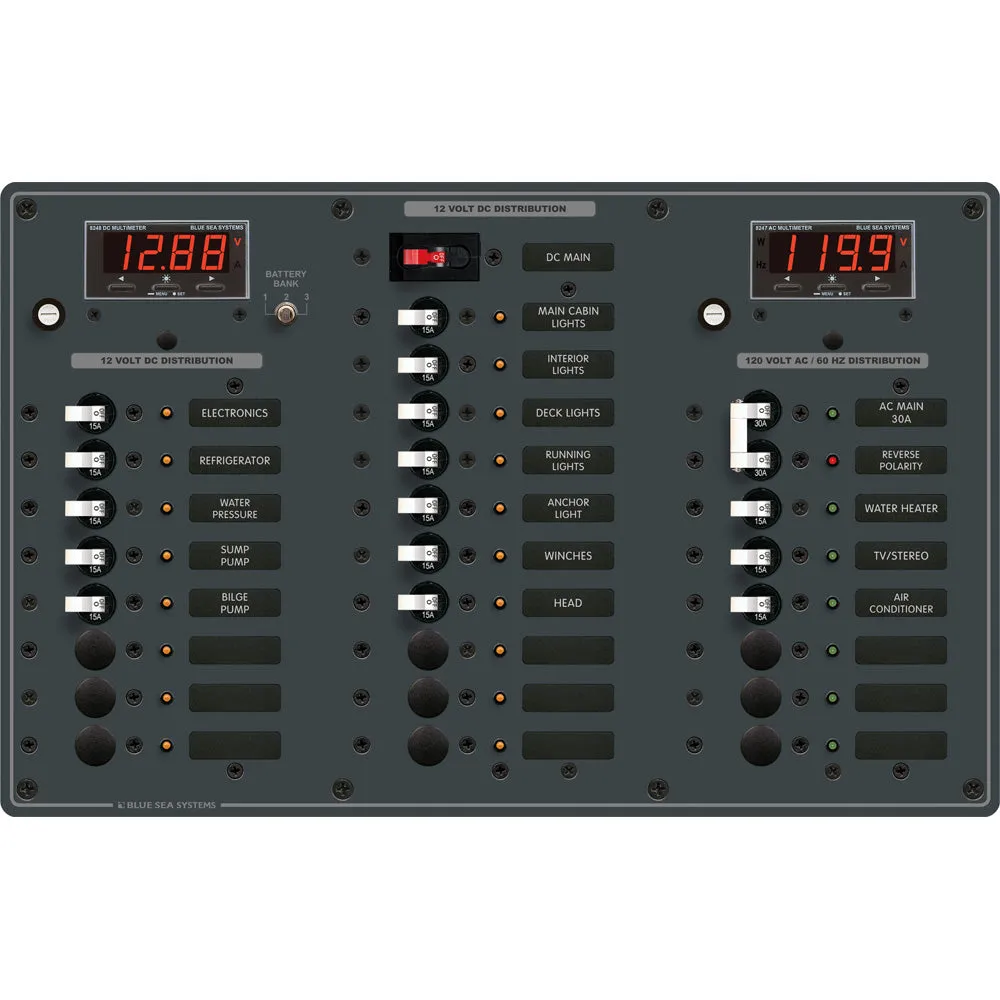

AC Main 6 Positions / DC Main 18 Positions

Installed AC Breakers

• 120V AC




• 12/24V DC




• All AC and DC buses installed and fully pre-wired




• Label backlighting pre-installed




• ON - indicating LEDs installed in all circuit positions




• 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch




• Maximum panel amperage - 100 Amperes AC, 50 Amperes DCMIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance




• Two-part polyurethane slate gray finish




• Heavy 1/8" aluminum 5052 alloy




• Detailed installation instructions and cutout template included




• Countersunk mounting holes throughout




• Includes set of 60 common AC and DC Large Format Labels




• Over 500 individual labels available
