Product Details
＋
Cal-Royal has focused on providing "Innovative and Value Added" hardware products and accessories to the builders industry. Cal-Royal is one of just three manufacturers providing the Clutch System (Genesys, Grade 1) for lever locks. This system provides superior design and value by deterring damage to levers from misuse or vandalism. Furthermore, we offer a complete line of mortise locks, exit devices, door closers, hinges, and many other hardware and trim products.
Features:
- Meets or exceeds BHMA / ANSI A 156.2 series 4000, grade 1 requirements, GRADE 1
- For Offices, schools, hospitals, apartments, hotel/motel, residential, commercial and public buildings

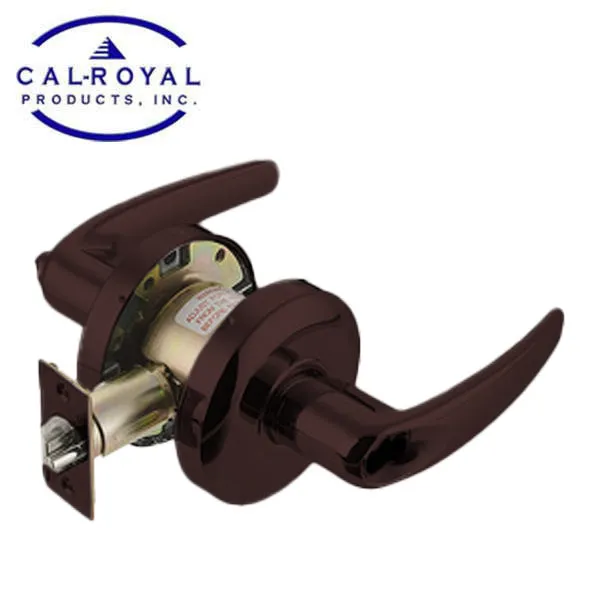

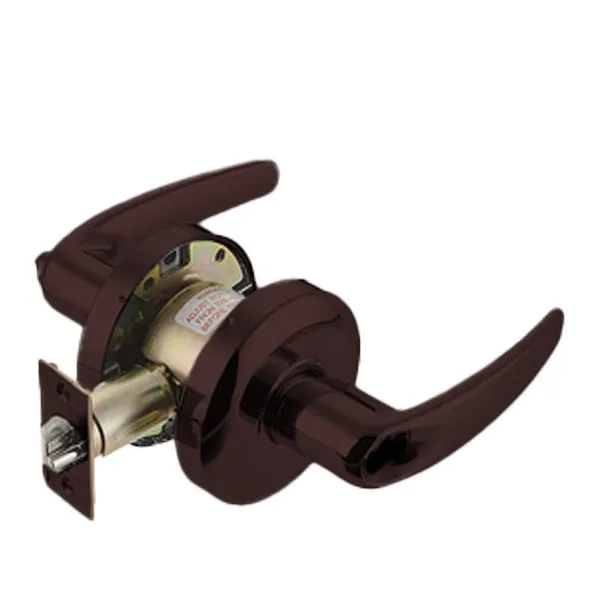

- Heavy Duty Cylindrical Leversets
- The clutch mechanism Fixed thru-bolt installation
Specifications:
| Brand | Cal-Royal |
| Lock Function | Entrance / Office Lever |
| Keyway | Schlage C |
| Backset | 2-3/4" |
| Handing | Non-Handed |
| Fire Rating | UL-cUL listed for up to 3 hours |
| ANSI/BHMA Standard | ANSI / BHMA A156 2 series 4000 Grade 1 |
| Latch | 1/2" throw, deadlocking - 1-1/8" x 2-1/4" face |
| Strike | 4-7/8" x 1-1/4" ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Door Thickness | 1-3/8" to 1-3/4" |
