Product Details
＋

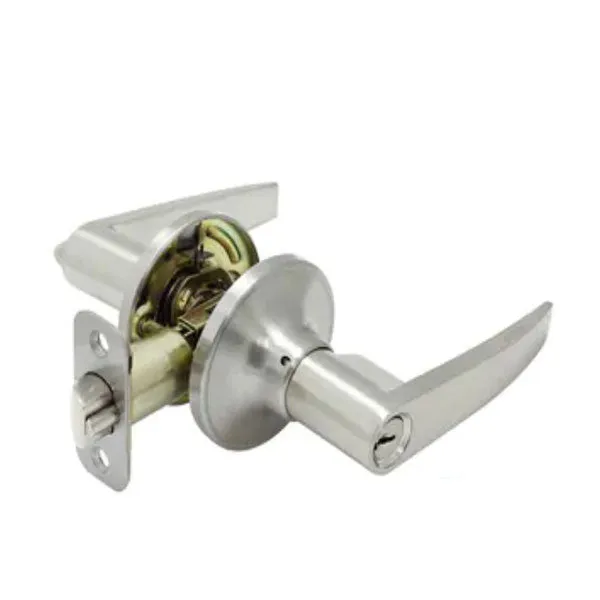

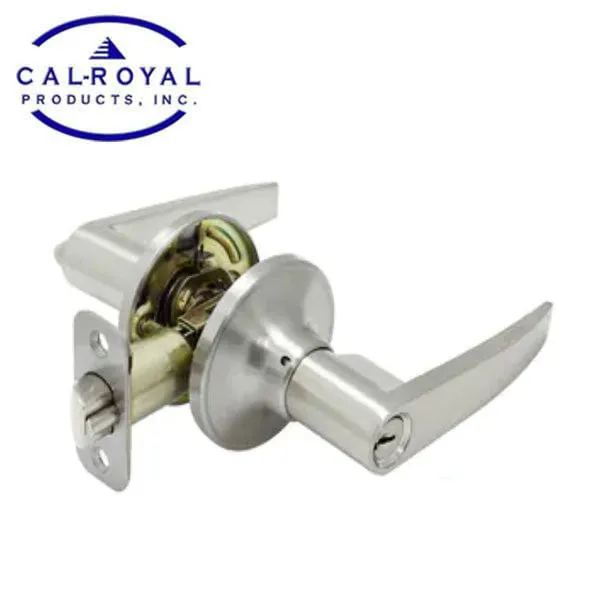

Cal-Royal Chelsie series door lever set. For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
Features:
- ANSI standard A156.2, GRADE 3
- 5 Year Finish Warranty, 25 Year Mechanical Warranty
- Keyed entry comes with lever / lever for exterior and interior
- Kwikset keyway. Re-keyable for master and construction keying
Specifications:
| Function |
Entrance |
| Door Ranges | 1 ⅜” to 1 ¾” thickness |
| Backset | 2 ⅜” or 2 ¾” Adjustable Backset |
| Keying | “KW” 5-Pin Kwikset Keyway Standard |
| Lever | Lenox - LEN |
| Latch Face Plate |
2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width. |
| Bore |
1” Bore Diameter for Latch, 2 1/8” Diameter for Lock Housing |
| Strike | Round Corner Deadbolt Strike: 1” x 2 ¼” |
| Finish | US15 - Satin Nickel |
| Grade | Grade 2 |
| Certifications | ANSI Standard A156.2 |
| Manufacturer's Warranty | 5 Year Finish, 25 Year Mechanical |
