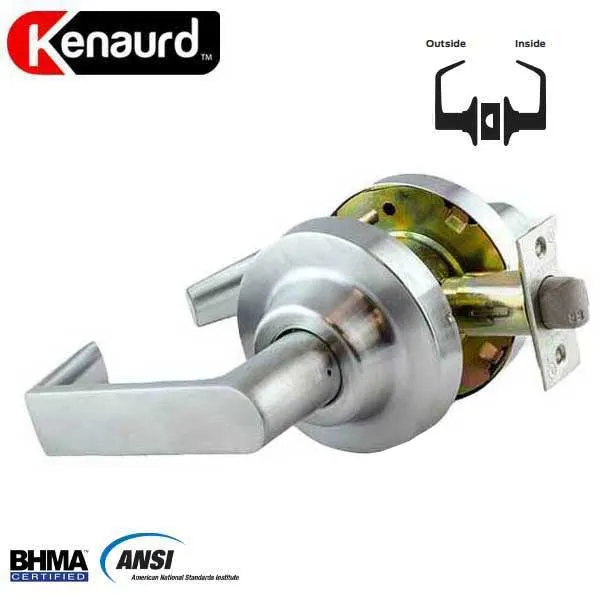

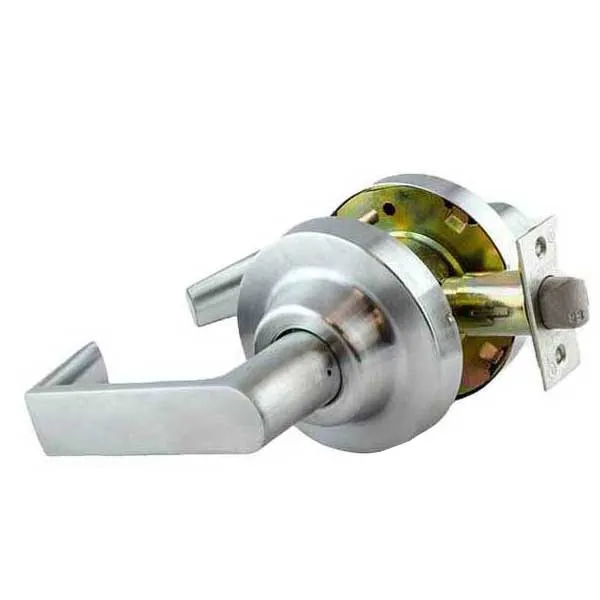

Product Details
＋
The Premium Commercial Grade 1 Series is designed for heavy commercial use. It is built for heavy use in commercial applications
Perfect for commercial applications in Office Buildings, Schools, Universities, Hospitals and much more.
More Information Below
| Lock Function | ANSI F75 Passage lock |
| Handing | Non-Handed |
| Door Thickness | 1-5/8” to 1-7/8” |
| Cylinder | No Cylinder |
| Backset |
2 3/4" (70 mm) standard, Optional 2 3/8" (60 mm) sold separately |
| Latch |
11-096 Deadlatch 1/2" (13 mm) throw |
| Hsg diameter | 1" (25 mm) |
| Levers | Rigid Lever - Pressure cast zinc |
| Thru Bolts | Removable thru-bolts fit existing preps like Schlage, Best, Yale, Corbin Russwin, Sargent, Arrow and more |
| Strike | 10-025 1 3⁄16", 1 3⁄8" (30 mm, 35 mm) 1 1 ⁄4"x 47 ⁄8" (32 mm x 124 mm) ANSI |
| Finish | 626 - 26D - Satin Chrome |
| Certifications |
Meets or exceeds A156.2 performance requirements for grade 1 cylindrical locks. |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
| Keyed Alike | Up to 10 KA10 |
