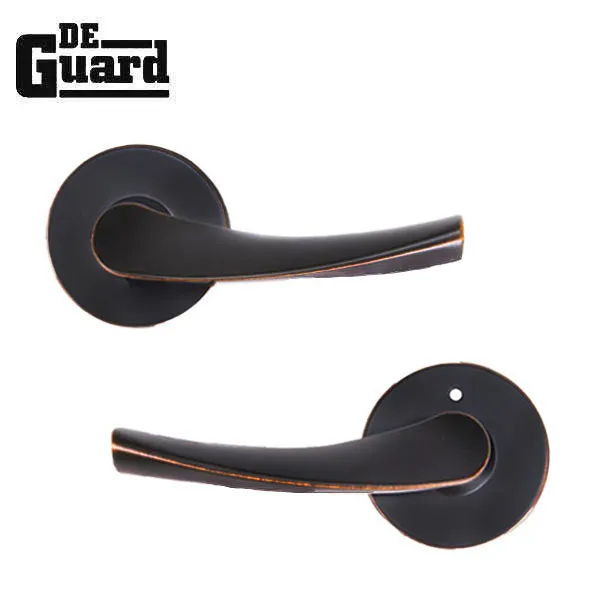

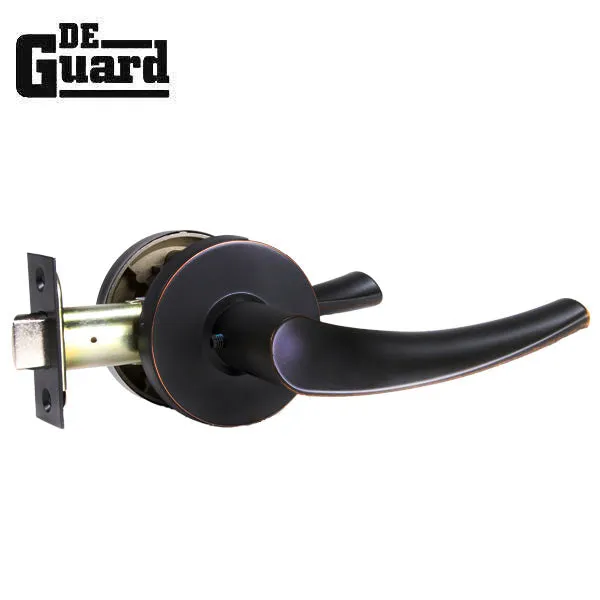

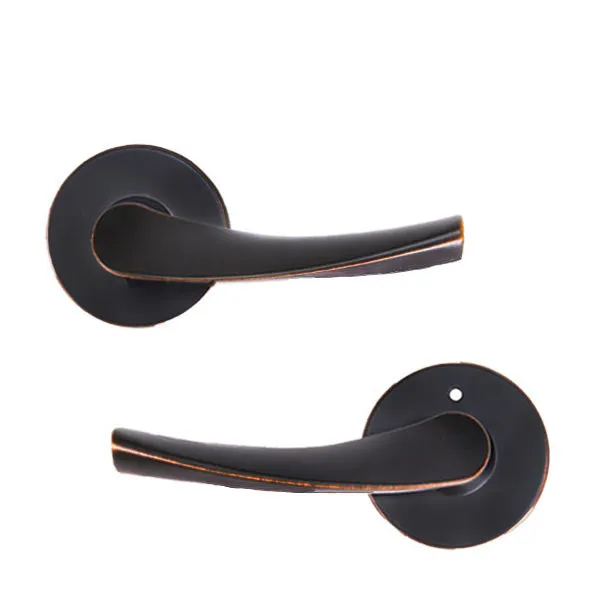

Name: Contemporary Wave Lever Set - Passage - Round Rose - Aged Bronze - Grade 3
SKU: 2183322

Product Details ＋

This Contemporary Wave Lever Set provides the perfect balance between form, function, and state-of-the-art security. This Aged Bronze finish is beautiful, resistant to smudging, and offers outstanding durability. These locksets are designed to fit most residential doors, have adjustable latches, and meet the uncompromising grading standards of the ANSI for residential and builders hardware.

Features

No locking function
Easy Installation: only tool required is a screwdriver
No Privacy key required.
Latch features a radius faceplate or can be easily converted to a drive-in style
Does not have a keyed cylinder, not for use where keyed security is required
Reversible handing

Specifications

Configuration	Leverset
Assembled Depth (in.)	6.41 in
Assembled Height (in.)	2.56 in
Assembled Width (in.)	5.77 in
Cross bore diameter (in.)	1 in.
Lever grip length (in.)	4.82
Lever housing height (in.)	2.5
Lever housing width (in.)	2.5
Maximum door thickness (in.)	1.75
Minimum door thickness (in.)	1.375
Projection (in.)	.49
Strike height (in.)	2.25
Strike width (in.)	1.75
Throw length (in.)	.5
Function	Passage
Lever Style:	Wave
Cylinder	No Cylinder
Finish	716 - Aged Bronze
Handing	Field Reversible
Backset	Adjustable for 2-3/4", 2-3/8" backset
Latch Faceplate	Round Corner
Door Thickness	1-3/8" to 1-3/4" (35mm ~ 45mm)
Handle Length	2.1875 in.
Manufacturer Warranty	Limited Lifetime Warranty
BHMA Certification	ANSI Grade 3
