Product Description

• Key Features

• Maximum 25/230fps@720P

• HD and SD output switchable

• 2.8mm fixed lens (3.6mm optional)

• Maximum IR length 20 m, Smart IR

• IP67,12 VDC

• System Overview

• Experience 720P video and the simplicity of using existing cablinginfrastructure with HDCVI

• The Cooper series 720P HDCVI camera features a compact design and offers a high quality image at a friendly price

• It offers various fixed lens models with a multi-language OSD and HD/SD switchable output

• Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions

• 4 Signals Over 1 Coaxial Cable
  HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power

• Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as
  sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility

• Long Distance Transmission
  HDCVI technology guarantees real-time transmission at long distance without any loss

• It supports up to 800m(1080P)/1200m(720P) trans- mission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable

• Simplicity
  HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection

• HDCVI system can seamlessly upgrade the traditional ana-log system without replacing existing coaxial cabling

• The plug and play approach enables HD video surveillance without the hassle of configuring
  a network

• Smart IR

• The camera is designed with microcrystalline LED IR illumination for best lowlight performance

• Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination

• Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the
  distance of an object, and prevents IR LEDs from overexposing images as

• Multi-Formats

• The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market

• The four formats can be switched over through OSD menu or by PFM820(UTC controller)

• This feature makes the camera to be compatible with not
  only HCVRs but also most end users’ existing HD/SD DVRs

• Multi-Language OSD

• OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes

• The OSD menu includes configurations such as backlight mode, day/night, white balance

• The camera supports 4 languages for OSD menu, namely, English, French, Spanish and Russian

• Protection

• The camera's outstanding reliability is unsurpassed due to its rugged design

• The camera is protected against water and dust with IP67 ranking, making itsuitable for indoor or outdoor environments

• With working temperature range of -40°C to 60°C (-40°F to 140°F), the camera is designed for extreme temperature environments

• Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions

• Its 4KV lightning rating provides protection against the camera and its structure from the
  effects of lightning

Product Specification

Brand	Dahua
Product Type	Bullet Camera

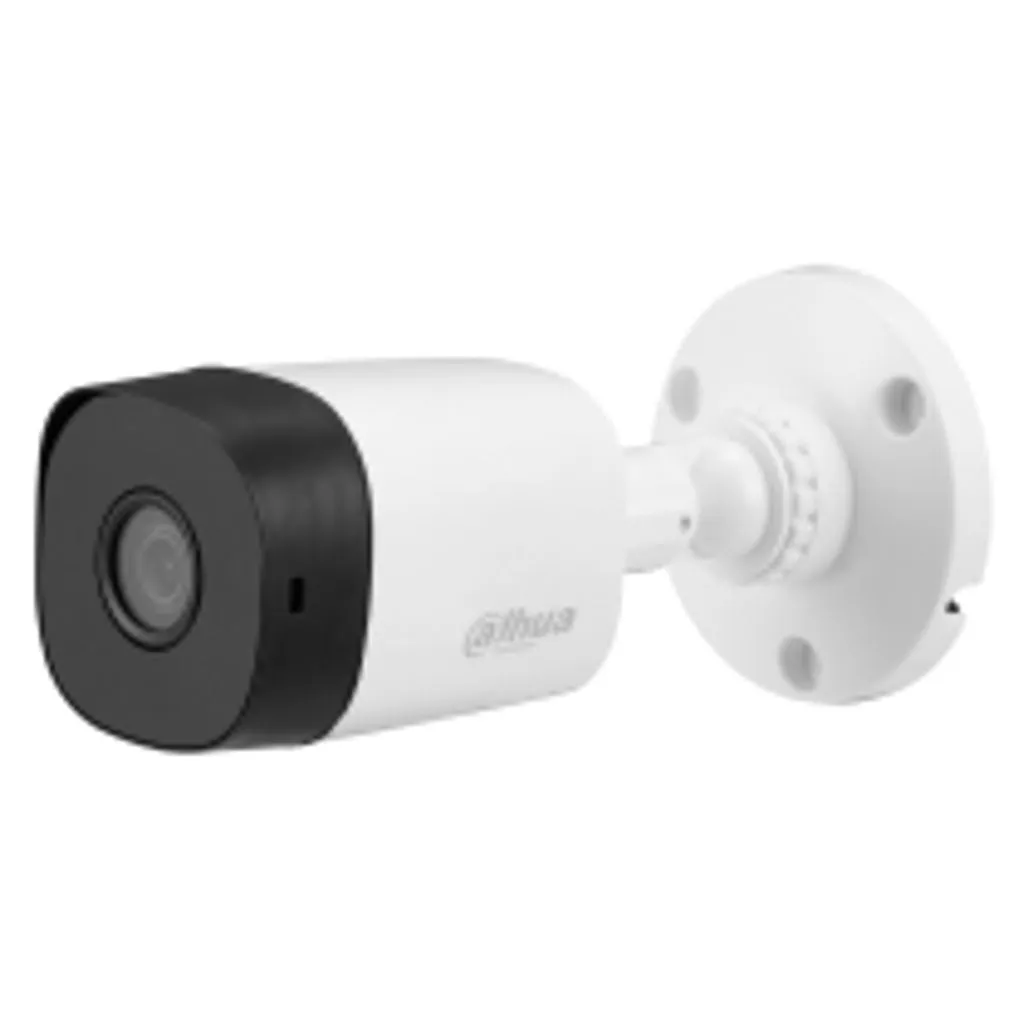

Product Model	DH-HAC-B1A11P
Camera
Image Sensor	1/2.7" CMOS
Effective Pixels	1280(H)×720(V), 1MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.04Lux/F2.4, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 20m (66feet)
IR On/Off Control	Auto / Manual
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	2.8mm(3.6mm optional)
Maximum Aperture	F2.4
Angle Of View	H: 93°(57.6°) V: 48°(32°)
Focus Control	N/A
Close Focus Distance	800mm (31.50 Inch)
DORI Distance		Distance
Detect	25px/m (8px/ft)	2.8mm: 51m(167ft) 3.6mm: 51m(167ft)
Observe	63px/m (19px/ft)	2.8mm: 20m(66ft) 3.6mm: 20m(66ft)
Recognize	125px/m (38px/ft)	2.8mm: 10m(33ft) 3.6mm: 10m(33ft)
