Product Description
-
2MP 1/2.8" CMOS image sensor, low luminance, and high definition image
-
Outputs max. 2MP (1920 × 1080) @25 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, and the max. illumination distance is 30 m
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
-
ROI, SMART H.264 /H.265 , flexible coding, applicable to various bandwidth and storage environments
-
12V DC power supply, easy for installation
-
IP67 protection
-
Functions
-
Smart H.265 & Smart H.264
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Smart Illumination
-
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
-
Motion Detection
-
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
-
Cyber Security
-
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device
-
Protection (IP67, Wide Voltage)
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
Brand |
Dahua |
||||
Product Type |
Network Camera |
||||
Model |
DH-IPC-HDW1230DV-S6 |
||||
Series |
Lite |
||||
Camera | |||||
Image Sensor |
1/2.8" CMOS |
||||
Max. Resolution |
1920 (H) × 1080 (V) |
||||
ROM |
16 MB |
||||
RAM |
64 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
Min. Illumination |
0.01 [email protected] |
||||
S/N Ratio |
> 56 dB |
||||
Illumination Distance |
2.8 mm: 30 m (98.43 ft) (IR) 3.6 mm: 30 m (98.43 ft) (IR) |
||||
Illuminator On/Off Control |
Auto; Manual |
||||
Illuminator Number |
2 (IR LED) |
||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
Lens | |||||
Lens Type |
Fixed-focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8 mm; 3.6 mm |
||||
Max. Aperture |
2.8 mm: F2.0 3.6 mm: F2.0 |
||||
|
Field Of View |
2.8 mm: Horizontal: 102°; Vertical: 59°; Diagonal: 120° 3.6 mm: Horizontal: 83°; Vertical: 44°; Diagonal: 99° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recogniz |
Identify |
2.8 mm |
38.6 m (126.64 ft) |
15.4 m (50.52 ft) |
7.7 m (25.26 ft) |

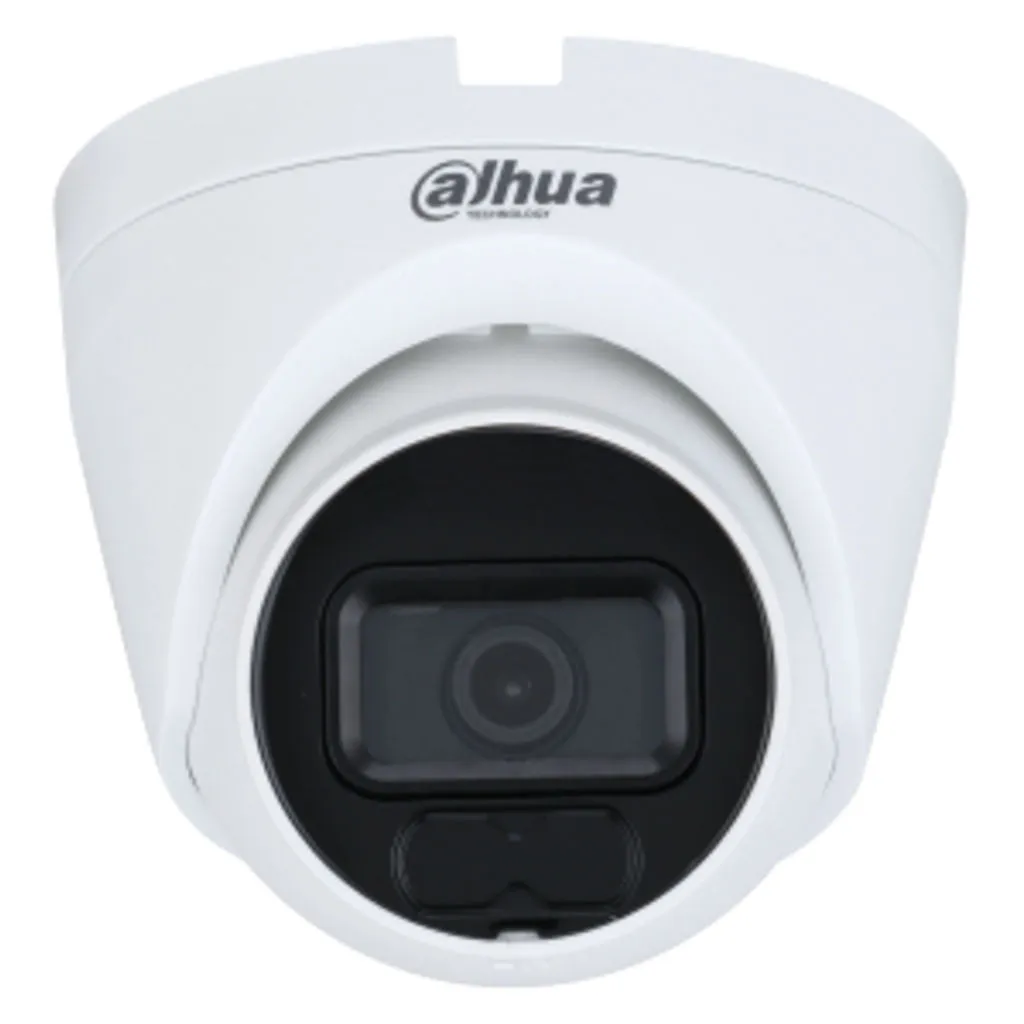

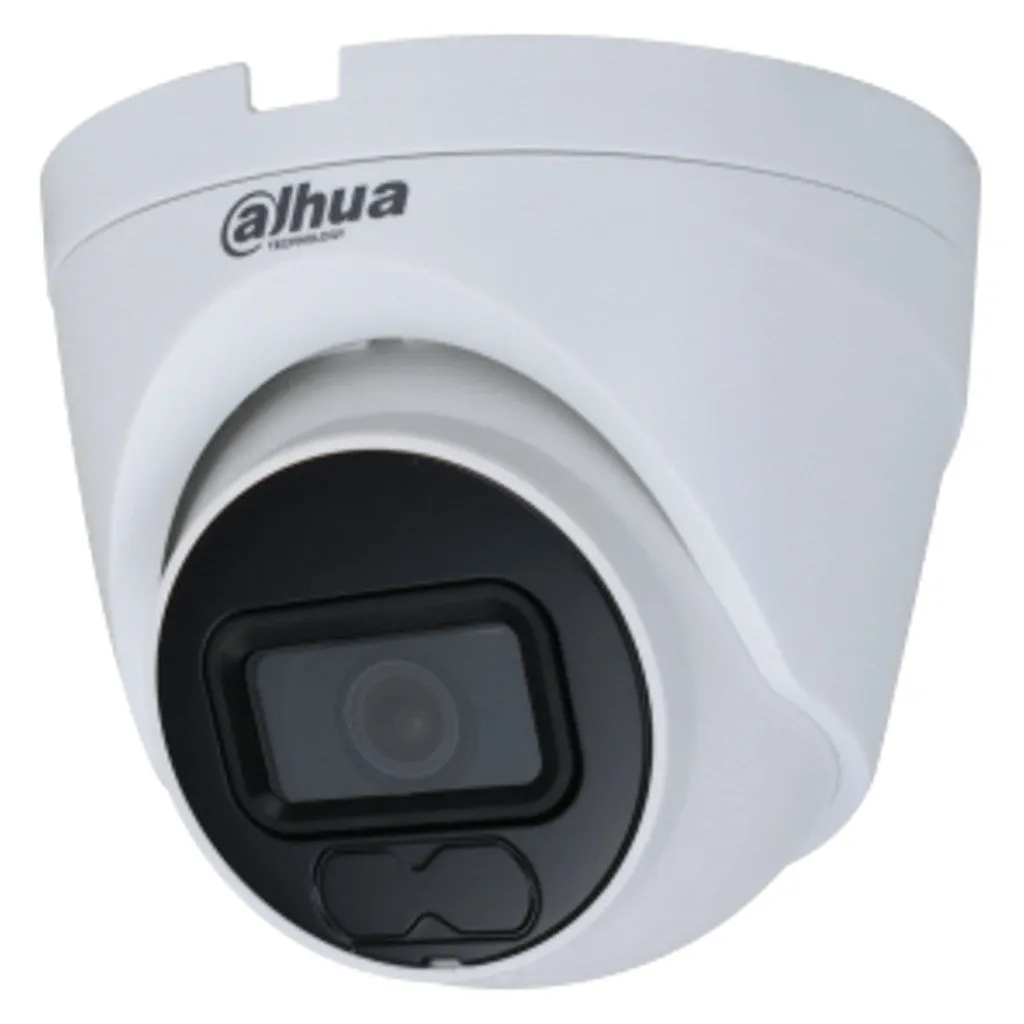

Dahua Entry IR Fixed-Focal Eyeball Network Camera 2MP DH-IPC-HDW1230DV-S6$ 81.91 $ 63.01 Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
