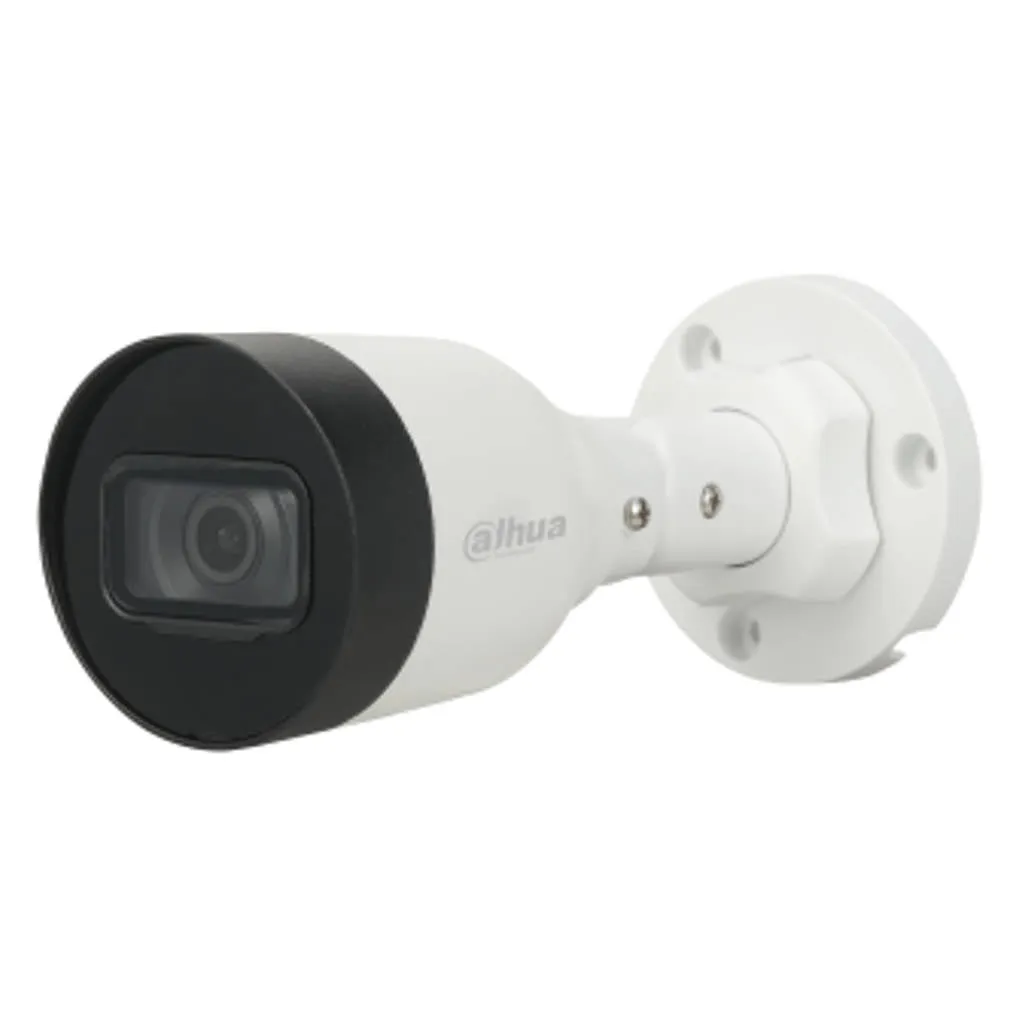

Product Description

• 2MP, 1/2.7” CMOS image sensor, low illuMinimumance, high image definition

• Outputs Maximum 2MP (1920 × 1080) @25/30 fps

• H.265 codec, high compression rate, ultra-low bit rate

• Built-in LEDs, max LED distance: 15 m

• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

• Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access

• 12V DC/PoE power support

• IP67 protection

• System Overview

• With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises

• Functions
  Smart Codec

• With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission

• Full-color

• With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra-low illuMinimumance

• With this photosensitivity technology, the camera cancapture more available light, and display more colorful image details

• Motion Detection

• When moving objects appear in the monitoring image, Dahua Motion Detection technology triggeRS alarm or records

• Image FlIP

• For narrow and long scenes, Dahua image flIP technology flIPs the image by 90°/270° to realize better surveillance in rotation mode
  Protection (IP67,wide voltage)

• IP67: The camera passes a series of strict test on dust and soak

• It hasdust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 Minimumutes

• Wide voltage: The camera allows ±30% input voltage tolerance (widevoltage range), and it is widely applied to outdoor environment with instable voltage

Product Specification

Brand			Dahua
Product Type			Netwok Camera
Product Code			DH-IPC-HFW1239S1P-LED-S4
Image Sensor			1/2.7" 2Megapixel progressive CMOS
Effective Pixels			1920 (H) × 1080 (V)
ROM			16 MB
RAM			64 MB
Scanning System			Progressive
Electronic Shutter Speed			Auto/Manual 1/3 s–1/100000 s
Minimum Illumination			0.005 Lux @F1.6
LED Distance			2.8 mm: 10 m (32.8ft) 3.6 mm: 15 m (49.2ft)
LED On/Off Control			Auto/Manual
LEDs Number			1
Pan/Tilt/Rotation Range			Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360°
Lens Type			Fixed-focal
Mount Type			M12
Focal Length			2.8 mm 3.6 mm
Maximum Aperture			2.8 mm: F1.6 3.6 mm: F1.6
Field of View			2.8 mm: Pan 110° × Tilt 59° × Diagonal 132° 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109°
Iris Type			Fixed
Close Focus Distance			2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.1 m (3.6 ft)
Lens			Detect Observe Recognize Identify
DORI Distance
Lens	Detect	Observe		Recognize	Identify
2.8 mm	37.3 m (122.4 ft)	14.9 m (48.9 ft)		7.5 m ( 24.6 ft)	3.7 m (12.1 ft)
