Product Details
＋

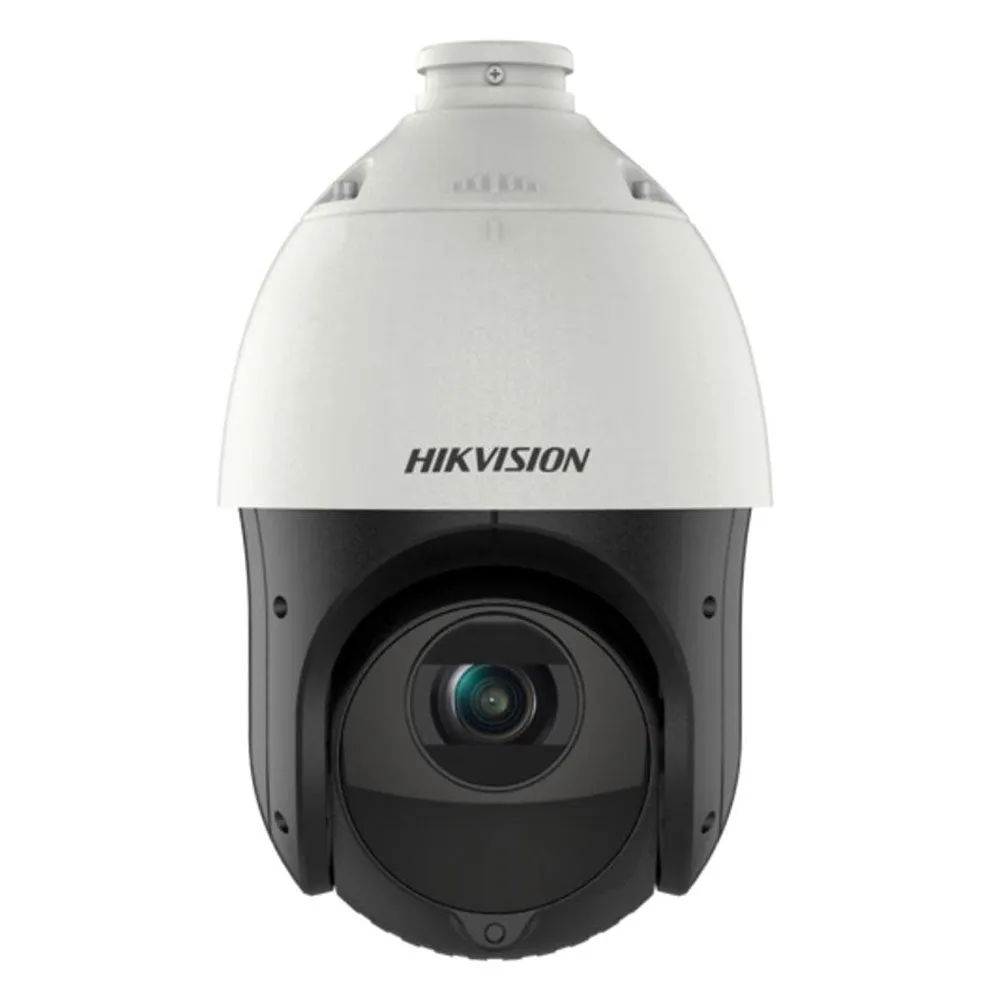

- Brand: Hikvision
- Model: DS-2DE4225IW-DE(T5)
- Type: Surveillance Camera
-
Camera
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Resolution: Max. 2MP, 1920 × 1080
- Illumination: Min. Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time: 1 s to 1/30,000 s
- Day/Night: IR Cut Filter
- Lens: 4.8 mm to 120 mm
- Field of View: Horizontal FOV 57.6° to 2.5°, Vertical FOV 34.4° to 1.4°, Diagonal FOV 64.5° to 2.9°
- Light Type: IR
- Light Range: Up to 100m
- Day/Night Switch: Day, Night, Auto, Schedule
- Support Digital WDR: Yes
- Image Enhancement: BLC,HLC,3D DNR
-
Video & Audio:
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
-
Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
-
Video Compression: Main stream: H.265 /H.265/H.264 /H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
-
Video Bit Rate: 32 kbps to 16384 kbps
- Environment Noise Filtering: Yes
-
Interface
- Built-in Mic: Yes
- Alarm: Yes, Motion Detection
- Ethernet Interface: 1x RJ45 10 M/100 M Self-Adaptive Ethernet Port
-
Network:
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
Simultaneous Live View: Up to 20 Channels
-
API: Yes
- User/Host: Up To 32 Users 3 User Levels: Administrator, Operator, and User
-
General
- Operating Conditions: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
- Power Consumption: Max. 5.4W, PoE: PoE (802.3at)
- Material: ADC12
- Dimensions: Ø 164.5 × 290 mm
- Warranty: 1 Year With Warranty Of The Authorized Agent
