Specs

Model:

TBX-12

Item #:

076815

Drive Size:

Type A

American:

21.2 - 106.2 lbf.in

S.I.:

2.4 - 12 N.m

Metric:

- kgf.cm

Tool Weight:

0.8 lbs.

Tool Length:

11.75

Tool Width:

4.5

Tool Height:

Break:

20° or 90°

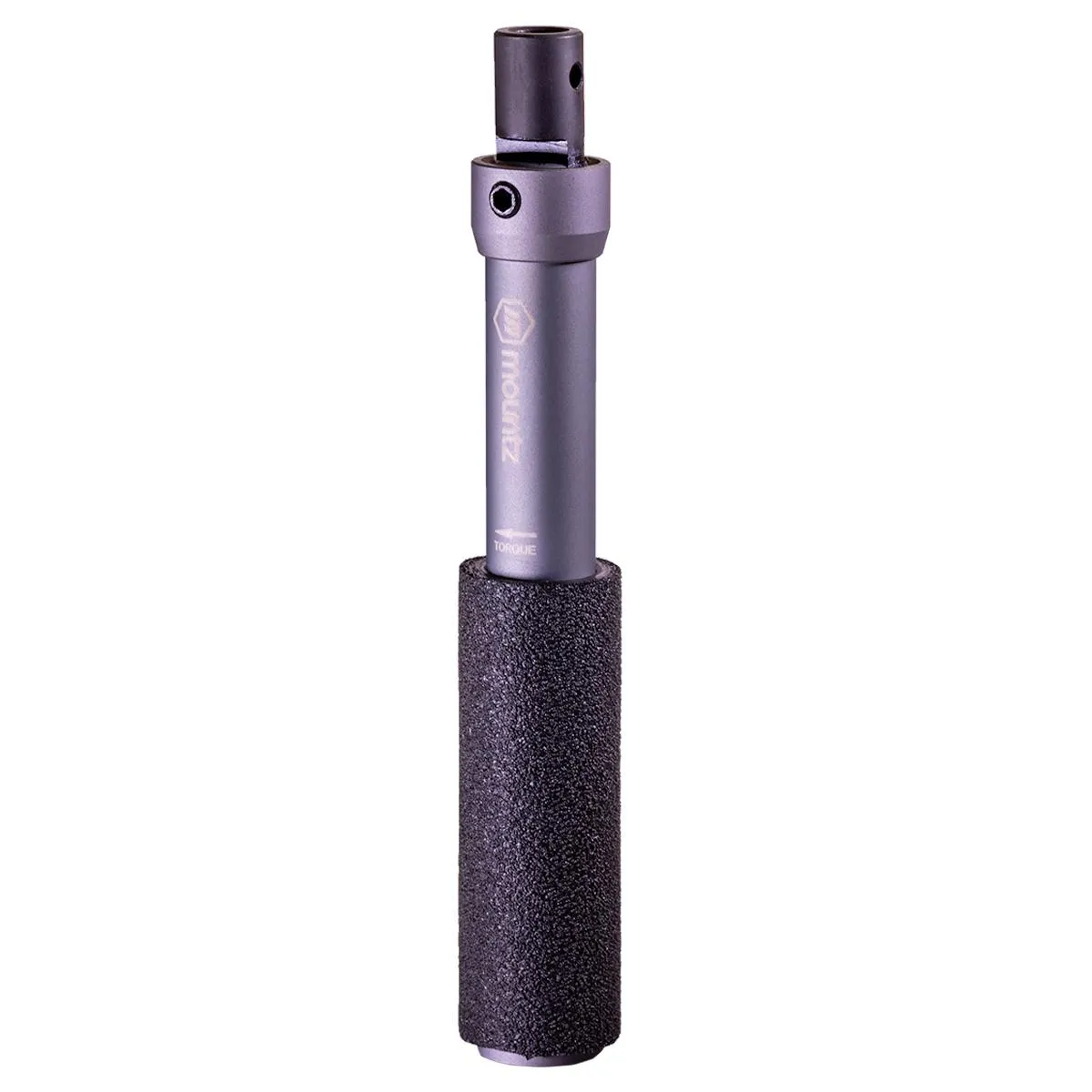

Designed to tighten various types of fasteners accurately, the TBX-12 break-over wrench informs the operator when the proper torque is reached by deflecting at the pivot point near the tool's end. The unique break-over mechanism gives an operator ample time to react once the target torque is achieved and stop applying additional force to the fastener. Our break-over technology increases the consistency of torque delivered and joint reliability. The flexible preset wrench can adapt to different fastening applications as it is compatible with varying head options like an open end, box end, hex key end, or a ratchet head.

The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 ( /- 4% of indicated setting).

Torque limiting wrench improves control of the tightening process
Reduces the risk of both over and under-tightening.
Break-over mechanism provides a visual indicator of achieving torque setting
Calibration life 4x ISO standards
Preset wrench ensures that the correct torque value is consistently applied to each fastener
Tamper-proof internal adjustment. No external adjustment scale - must be preset using a
Delivers repeatability, traceability and precision for tightening applications
Interchangeable end fitting design—selectable head types and sizes (open end, box head, hex key, fixed square drive heads and ratchet head)
Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed

TBX model operates in a single direction (clockwise).
