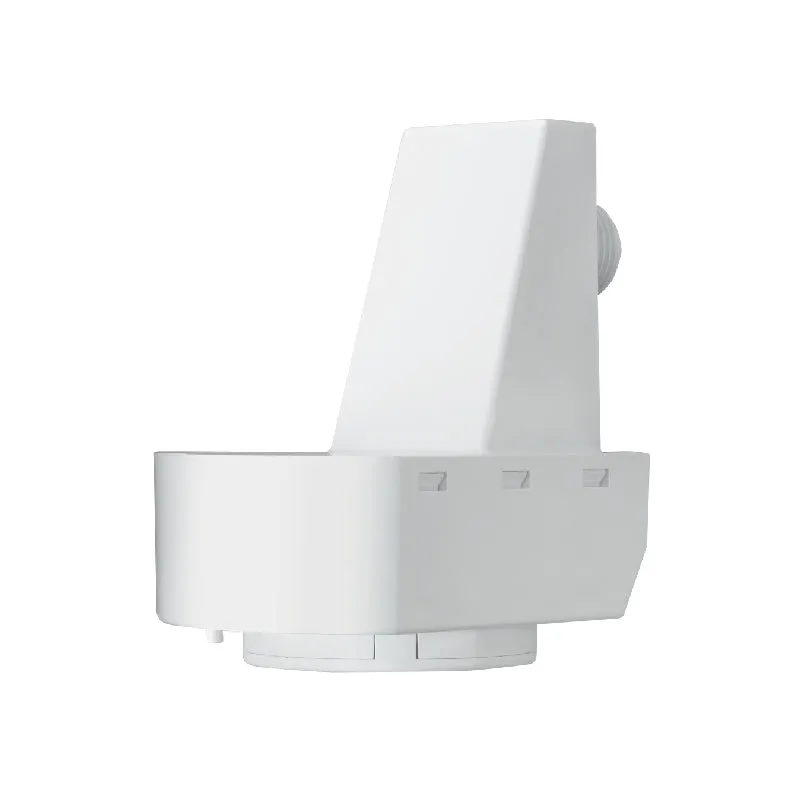

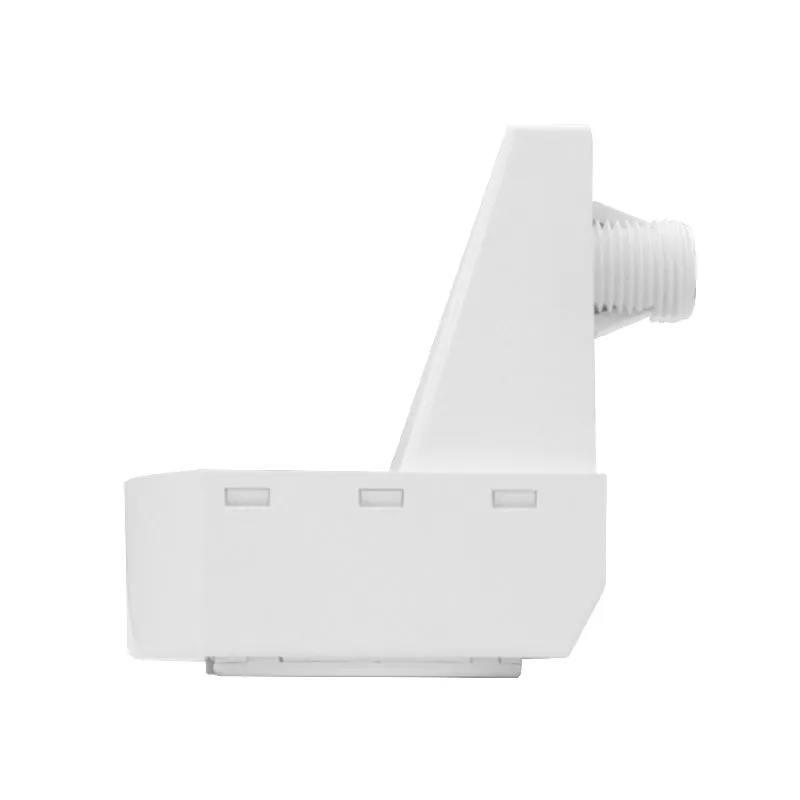

The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications.

Features

• Finish: White
• Lens: High & Low Mount 360º & Aisleway
• Voltage: 120-277V

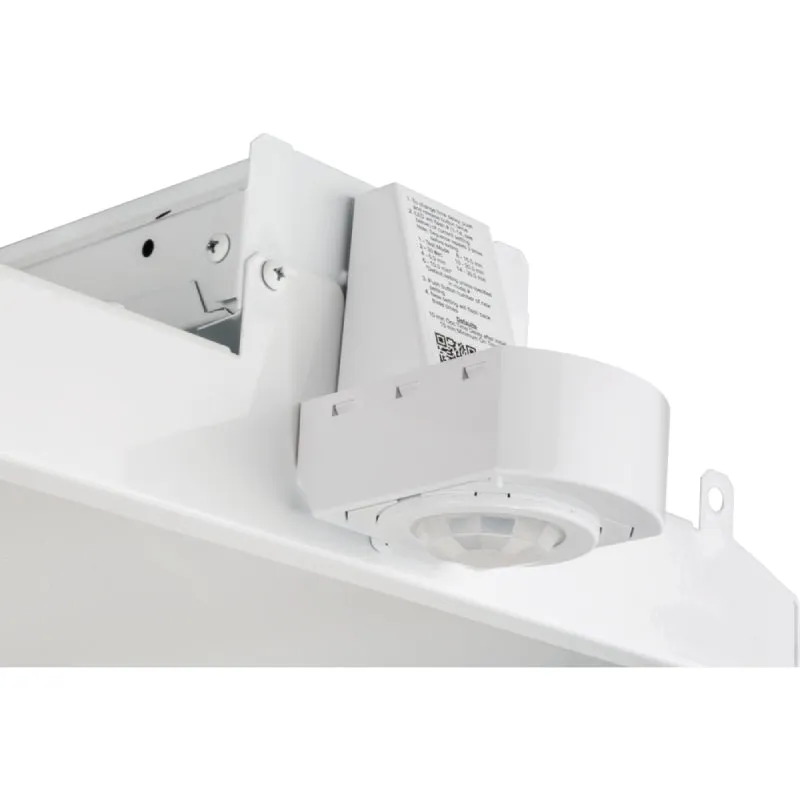

• Integrated mounting bracket drops lens down 3” from chase nipple - no bracket accessory required
• 100% digital PIR detection - provides excellent RF immunity
• No PIR field calibration or sensitivity adjustments required
• Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
• Powers from single or two-phase line connections
• Reversible hot & load wires - eliminates backwards wiring
• Digital push-button programming - no tools or analog adjustments required
• Non-volatile settings memory
• Convenient test mode - quickens initial walk and/or photocell testing
• Green LED indicator
• LampMaximizer minimum on timer (15 min) enables usage of shorter occupancy time delays while protecting fluorescent lamp life
• Default 10 minute occupancy time delay
