Reliable Motion Detection
Designed for indoor and outdoor use, ensuring consistent and precise motion sensing.

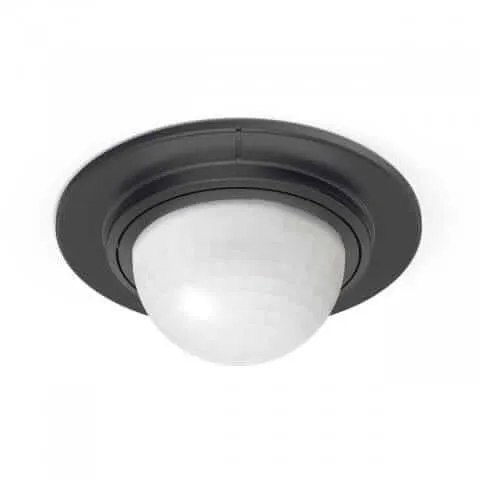

- Sleek Black Design: Seamlessly blends into ceilings for a discreet and modern appearance.
- 360° Full Coverage: Features 3 pyro sensors for a comprehensive 360° detection angle.
- Adjustable Detection Range: Customisable reach of up to 24 metres to cover large areas effectively.
- Customisable Detection Zone: Adapt the detection area using shrouds to suit specific needs.
- Smart Settings: Includes adjustable time and twilight thresholds for tailored performance.

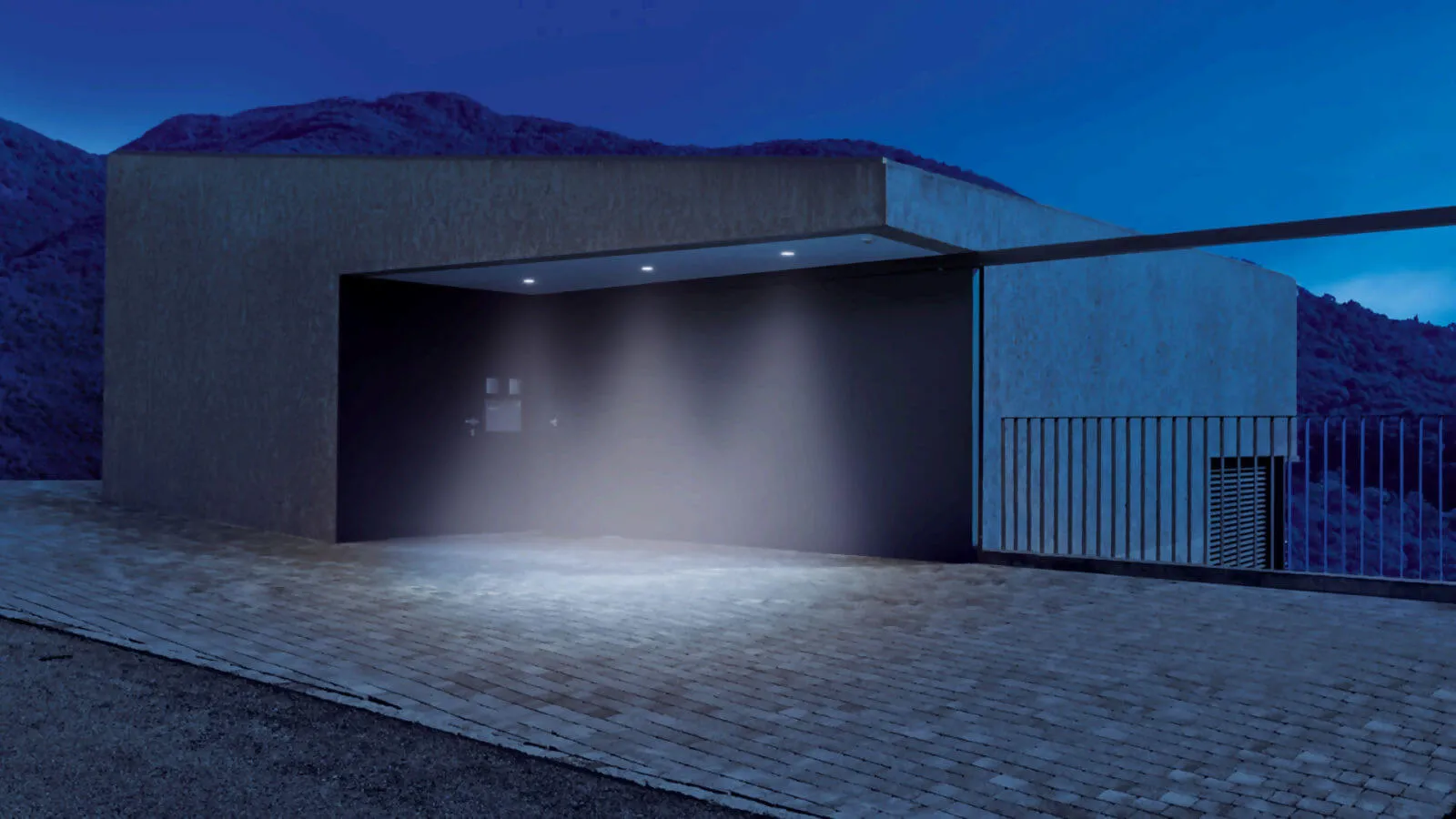

- Versatile Mounting Options: Perfect for soffits, carports, large building facades, and driveways.
The Steinel IS 2360-3 is the ultimate all-rounder motion sensor, combining robust functionality and sleek design for modern lighting solutions in residential and commercial spaces.
----------
The Perfect Multi-Talent for Indoors and Outdoors

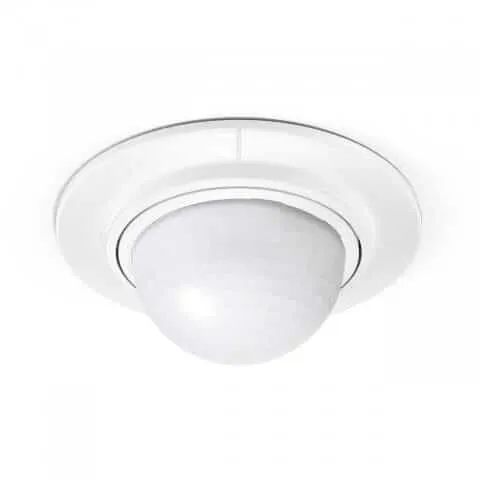

Discover the ultimate in motion detection with the Infrared Ceiling Sensor, designed to meet all your lighting needs with effortless installation and advanced functionality. Ideal for both indoor and outdoor applications, this sensor combines sophisticated technology with user-friendly features to deliver exceptional performance.
- Effortless Installation: Simplify your setup with a clever installation concept that saves time and effort.
- 360° Coverage: Equipped with three pyro sensors, offering a full 360° angle of detection for comprehensive motion sensing.
- Extended Range: Detects motion up to 12 metres, ensuring reliable performance in larger spaces.
- Customisable Detection Zone: Adapt the detection area to your exact needs by fitting shrouds for tailored coverage.
The Infrared Ceiling Sensor offers unparalleled functionality and flexibility, making it the perfect choice for seamless lighting control in both residential and commercial spaces.
---------
| General | |
|---|---|
| Dimensions (Ø x H) | 78 x 89 mm |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Settings via | Potentiometers |
| With remote control | No |
| Version | White |
| PU1, EAN | 4007841034733 |
| Type | Motion detectors |
| Application, place | Outdoors, Indoors |
| Application, room | Corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, outdoors, front door, all round the building, terrace / balcony, Indoors |
| Colour | White |
| Colour, RAL | 9010 |
| Fixation/mounting | |
| Includes corner wall mount | No |
| Installation site | Ceiling |
| Installation | In-ceiling installation, Ceiling |
| Housing | |
| IP-rating | IP54 |
| Protection class | II |
| Ambient temperature | -20 – 40 °C |
| Material | Plastic |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, number of LEDs / fluorescent lamps | 6 stk. |
| Fluorescent lamps, electronic ballast | 430 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 406 VA |
| Fluorescent lamps, parallel-corrected | 406 VA |
| Switching output 1, low-voltage halogen lamps | 1000 VA |
| LED lamps < 2 W | 16 W |
| LED lamps > 2 W < 8 W | 64 W |
| LED lamps > 8 W | 64 W |
| Capacitive load in μF | 132 µF |
| General information | |
| Article number | 034733 |
| European Article Number (EAN) | 4007841034733 |
| Detection angle | 360 ° |
| Angle of aperture | 180 ° |
| Sensor technology | |
| Technology, sensors | Passive infrared, Light sensor |
| Mounting height | 2.2 – 4 m |
| Mounting height max. | 4.00 m |
| Optimum mounting height | 2.5 m |
| Sneak-by guard | Yes |
| Capability of masking out individual segments | Yes |
| Electronic scalability | No |
| Mechanical scalability | No |
| Reach, radial | Ø 4 m (13 m²) |
| Reach, tangential | Ø 8 m (50 m²) |
| Cover material | Shrouds |
| Functions | |
| Twilight setting | 2 – 2000 lx |
| Time setting | 8 s – 35 Min. |
| Basic light level function | No |
| Main light adjustable | No |
| Twilight setting TEACH | No |
| Constant-lighting control | No |
| Connection | |
| Interconnection | Yes |
| Type of interconnection | Master/master |
| Interconnection via | Cable |
----------
