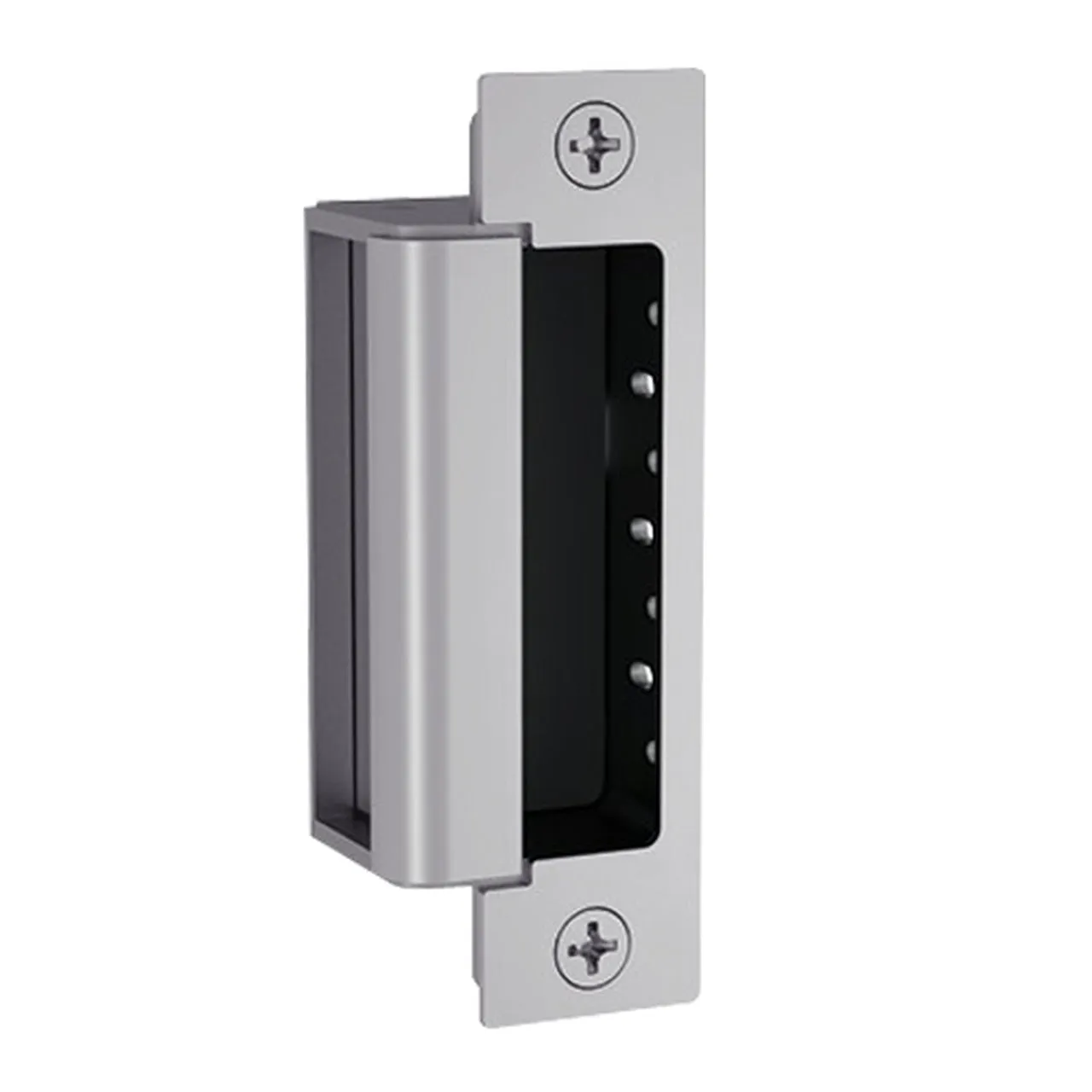

HES 1600-CS-630 Electric Smart Strike: The 1600 accommodates up to a 1" deadbolt with enhanced vertical cavity spacing. Included in the box are a 1600 strike body and 8 faceplates (1LB-Option & 1DB-Option) for latchbolts and deadbolts in metal frame applications.

The Complete One Box Solution for all cylindrical and mortise locksets, with or without a deadbolt!

The HES 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics fo an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in eight finishes.

Features

• Dual Lock Monitors and Strike Monitor
• Stainless steel construction

• Tamper-resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Non-handed
• Interchangeable faceplates and accessories
• Field replaceable components
• Fully finished faceplate, keeper, case and trim
• Field adjustable integrated shim
• Strike body depth 1-11/16" (43mm)
• Frame Application: Metal & Wood
• Finish: Satin Stainless Steel (630) finish

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL294 listed
• RoHS compliant
• UL 10C fire-rated, 3-hour single door (fail secure only)
• UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
• CAN/ULC-S104 fire door conformant
• NFPA-252 fire door compliant
• ASTM-E152 fire door complaint
• ANSI/SD1 A250.13 windstorm resistant
• Florida Building Code approved TAS 201, 202, 203
• ANSI-ASTM E330
• Sustainability documentation
