Product Details
＋
Key Features of the Outdoor Ceiling Sensor Light
- Detection in Four Directions: Equipped with four 90° infrared motion detectors for comprehensive coverage.
- Individually Adjustable Sensors: Each sensor can be customised for a detection range of 2–8m, ensuring precise performance.
- Sleek Design: Blends seamlessly into outdoor spaces, making it almost unnoticeable as a sensor light.
- Durable and Reliable: Built with impact-resistant materials and suitable for mounting heights up to 6m.
- Energy-Efficient Lighting: Features warm white light (3000 K) with long-life 9.8 W LEDs delivering 1000 lumens.
- Smart Lighting Functions: Adjustable basic light level and 4-hour continuous light mode for added convenience.
- Eco-Friendly Packaging: Includes mounting accessories with 100% plastic-free packaging.
----------
Precision Detection and Brilliant Illumination
The LED Ceiling Light with Adjustable Detection redefines outdoor lighting with its innovative design and advanced functionality. Featuring 360° motion detection, this light is ideal for spaces like carports, porches, and other outdoor areas where precision and performance are essential.

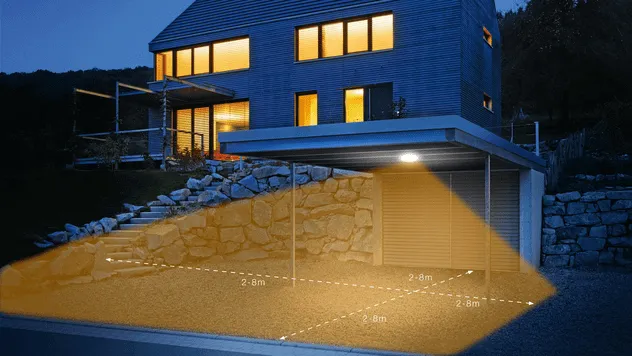

- Customisable Detection: Four infrared sensors, adjustable in each direction from 2–8m, provide tailored motion sensing for your specific needs.
- Innovative Sensor Design: The light diffuser doubles as the sensor lens, a patented breakthrough in motion detection technology.
- Optimal Coverage: Offers complete 360° all-round detection for superior coverage in any setting.
- Powerful Illumination: Delivers 1000 lumens of warm white light at an energy-efficient 10W output.
- Flexible Mounting: Designed for mounting heights of up to 6m, making it ideal for high ceilings and open spaces.
- Convenient Night Light Function: Provides a 10% light level at twilight for ambient illumination.
The LED Ceiling Light combines precise detection, innovative design, and exceptional illumination to create the ultimate outdoor lighting solution for modern spaces.
----------
| General | |
|---|---|
| Dimensions (Ø x H) | 280 x 110 mm |
| With lamp | Yes, STEINEL LED system |
| With motion detector | Yes |
| Manufacturer's Warranty | 5 years |
| Version | Warm white |
| PU1, EAN | 4007841056063 |
| Colour | White |
| Fuse protection B10 | 54 |
| Fuse protection B16 | 87 |
| Fuse protection C10 | 90 |
| Fuse protection C16 | 145 |
| Fixation/mounting | |
| Installation site | Wall, ceiling |
| Installation | Wall, Ceiling, Surface wiring |
| Housing | |
| Impact resistance | IK03 |
| IP-rating | IP54 |
| Protection class | II |
| Ambient temperature | -10 – 40 °C |
| Housing material | Plastic |
| Cover material | Plastic, opal |
| IP-rating, ceiling | IP54 |
| Electrical equipment | |
| Mains power supply | 220 – 240 V / 50 – 60 Hz |
| Switching output 1, low-voltage halogen lamps | 800 VA |
| LED lamps > 8 W | 250 W |
| Capacitive load in μF | 88 µF |
| Output | 9.4 W |
| Starting current, maximum | 13 A |
| Sensor technology | |
| Mounting height max. | 4.00 m |
| Electronic scalability | Yes |
| Mechanical scalability | No |
| Reach, radial | Ø 8 m (50 m²) |
| Reach, tangential | Ø 8 m (50 m²) |
| Detection angle | 360 ° |
| Luminaire | |
| Luminous flux total product | 968 lm |
| Total product efficiency | 103 lm/W |
| Colour temperature | 3000 K |
| Lamp | LED cannot be replaced |
| Base | Without |
| LED cooling system | Passive Thermo Control |
| Soft light start | Yes |
| Continuous light | Selectable, 4h |
| Lifetime LED according to IEC-62717 (L70) | 100,000 h |
| Lifetime LED according to IEC-62717 (L80) | 73,000 h |
| Lifetime LED according to IES TM-21 (L70) | > 60,000 h |
| Lifetime LED according to IES TM-21 (L80) | > 60,000 h |
| Colour Rendering Index CRI | = 82 |
| Photobiological safety in accordance with EN 62471 | RG1 |
| General information | |
| Article number | 056063 |
| European Article Number (EAN) | 4007841056063 |
| Basic light level function in per cent | 10 % |
| Functions | |
| Twilight setting | 2 – 2000 lx |
| Time setting | 5 s – 15 Min. |
| Basic light level function | Yes |
| Basic light level function time | 10/30 min, all night |
| Connection | |
| Interconnection | Yes |
| Interconnection via | Cable |
----------
